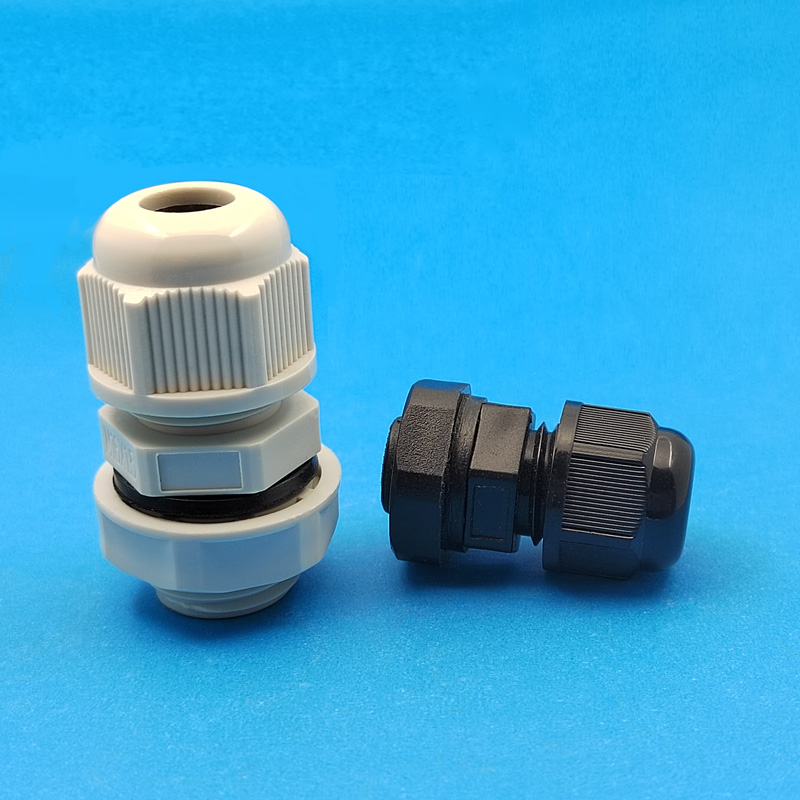

‧ 螺牙规格：公制牙(Metric)、PG牙、G (PF / BSP / PS)牙、NPT牙。
‧ 产品材质：A、C、F部分采用尼龙PA66制成，B.D部分采用EPDM耐候橡胶制成。（可定制耐寒、耐高温橡胶;耐高酸碱、耐化学与抗腐蚀橡胶)。
‧ 防护等级：IP68-10防水、94V-2防火
‧ 工作温度：静态-40℃至100℃或瞬间可耐热至120℃；动态-20℃至80℃或瞬间可耐热至100℃。

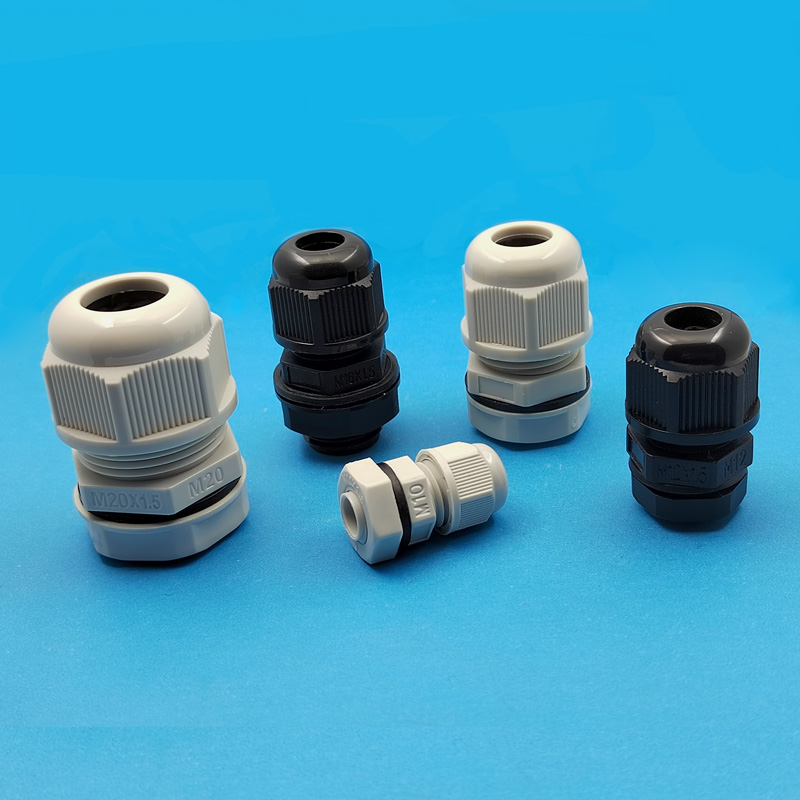

‧ 产品颜色：黑色、灰色，其他颜色可定做。
‧ 产品特性：特殊夹紧爪与夹紧圈之设计，夹紧电缆范围大，抗拉力特强，可防水、防尘、抗盐、耐弱酸、酒精、油、油脂及一般溶剂。
| 规格 | 编号 | 电缆范围 | 螺纹外径 | 螺纹长度 | 扳手径 |
| Thread | Item.No. | CableRange | ThreadO.D. | ThreadLength | SpannerSize |
| Ф(mm) | C1(mm) | C2(mm) | A&F(mm) | ||
| M8x1.25 | M8-2.5 | 1-2.5 | 8 | 7.5 | 12/13 |
| M8-4.8 | 2-4.8 | 8 | 7.5 | 12/13 | |
| M10x1.5 | M10-3 | 1-3 | 10 | 8 | 15/13 |
| M10-6 | 3-6 | 10 | 8 | 15/13 | |
| M12x1.5 | M12S-3 | 1-3 | 12 | 8.5 | 18/15 |
| M12S-6 | 3-6.5 | 12 | 8.5 | 18/15 | |
| M12SL-3 | 1-3 | 12 | 15 | 18/15 | |
| M12SL-6 | 3-6.5 | 12 | 15 | 18/15 | |
| M12-5 | 3-5.5 | 12 | 8.5 | 18/19 | |
| M12-8 | 4-8 | 12 | 8.5 | 18/19 | |
| M12L-5 | 3-5.5 | 12 | 15 | 18/19 | |
| M12L-8 | 4-8 | 12 | 15 | 18/19 | |
| M16x1.5 | M16S-5 | 3-5.5 | 16 | 10 | 22/19 |
| M16S-8 | 4-8 | 16 | 10 | 22/19 | |
| M16SL-5 | 3-5.5 | 16 | 15 | 22/19 | |
| M16SL-8 | 4-8 | 16 | 15 | 22/19 | |
| M16-7 | 3-7 | 16 | 10 | 22/22 | |
| M16-10 | 5-10 | 16 | 10 | 22/22 | |
| M16L-7 | 3-7 | 16 | 15 | 22/22 | |
| M16L-10 | 5-10 | 16 | 15 | 22/22 | |
| M18x1.5 | M18-7 | 3-7 | 18 | 10 | 24/22 |
| M18-10 | 5-10 | 18 | 10 | 24/22 | |
| M18L-7 | 3-7 | 18 | 15 | 24/22 | |
| M18L-10 | 5-10 | 18 | 15 | 24/22 | |
| M20x1.5 | M20M-7 | 3-7 | 20 | 10 | 27/22 |
| M20M-10 | 5-10 | 20 | 10 | 27/22 | |
| M20S-9 | 5-9 | 20 | 10 | 27/24 | |
| M20S-12.5 | 6-12.5 | 20 | 10 | 27/24 | |
| M20SL-9 | 5-9 | 20 | 15 | 27/24 | |
| M20SL-12.5 | 6-12.5 | 20 | 15 | 27/24 | |
| M20-11 | 5-11 | 20 | 11 | 27/27 | |
| M20-14 | 8.5-14 | 20 | 11 | 27/27 | |
| M20L-11 | 5-11 | 20 | 15 | 27/27 | |
| M20L-14 | 8.5-14 | 20 | 15 | 27/27 | |
| M22X1.5 | M22-11 | 5-11 | 22 | 11 | 30/27 |
| M22-14 | 8.5-14 | 22 | 11 | 30/27 | |
| M24X1.5 | M24-11 | 5-11 | 24 | 11 | 30/27 |
| M24-14 | 8.5-14 | 24 | 11 | 30/27 | |
| M25x1.5 | M25S-11 | 5-11 | 25 | 11.6 | 33/27 |
| M25S-14 | 8.5-14 | 25 | 11.6 | 33/27 | |
| M25-13 | 7-13 | 25 | 11.6 | 33/33 | |
| M25-18 | 12.5-18 | 25 | 11.6 | 33/33 | |
| M25L-13 | 7-13 | 25 | 15 | 33/33 | |
| M25L-18 | 12.5-18 | 25 | 15 | 33/33 | |
| M32x1.5 | M32-17.5 | 13-17.5 | 32 | 15 | 41/42 |
| M32-25 | 17-25 | 32 | 15 | 41/42 | |
| M36x1.5 | M36-17.5 | 13-17.5 | 36 | 12 | 45/42 |
| M36-25 | 17-25 | 36 | 12 | 45/42 | |
| M40x1.5 | M40-26.5 | 18-25 | 40 | 15 | 50/52 |
| M40-31 | 23-32 | 40 | 15 | 50/52 | |
| M50x1.5 | M50-32 | 25-32 | 50 | 15 | 62/62 |
| M50-41 | 30-41 | 50 | 15 | 62/62 | |
| M63x1.5 | M63-41 | 30-40 | 63 | 18 | 75/65 |
| M63-45 | 35-45 | 63 | 18 | 75/65 |
