‧ 螺牙规格：公制牙(Metric)、PG牙、G (PF / BSP / PS)牙、NPT牙。

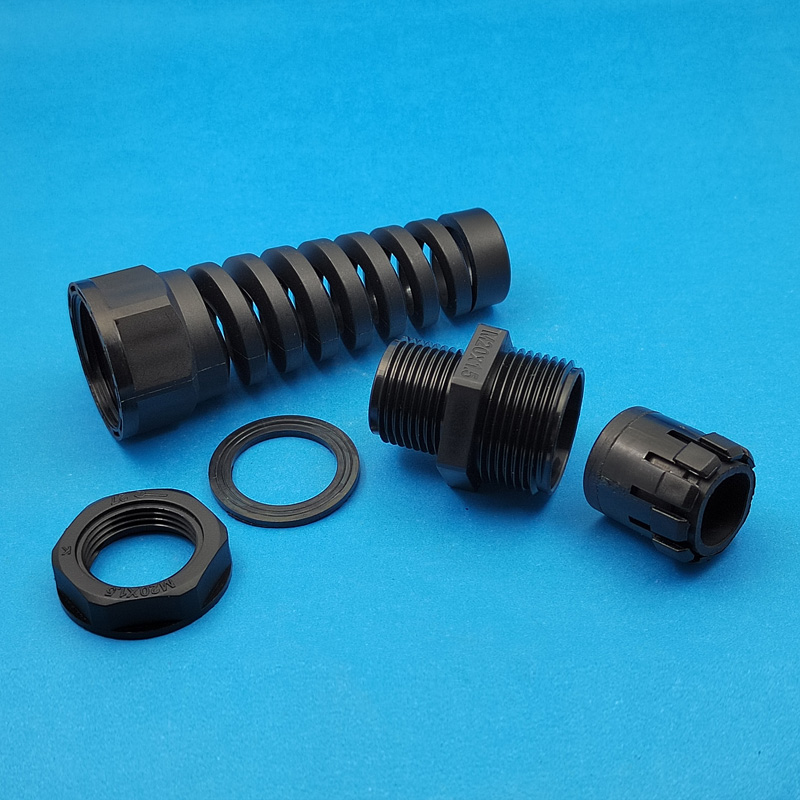

‧ 产品材质：A、C、E、F部分采用尼龙PA66制成，B.D部分采用EPDM耐候橡胶制成。（可定制耐寒、耐高温橡胶;耐高酸碱、耐化学与抗腐蚀橡胶)。
‧ 防护等级：IP68-10防水、94V-2防火（可定制更高等级）
‧ 工作温度：静态-40℃至100℃或瞬间可耐热至120℃；动态-20℃至80℃或瞬间可耐热至100℃。
‧ 产品颜色：黑色、灰色，其他颜色可定做。
‧ 产品特性：特殊夹紧爪与夹紧圈之设计，夹紧电缆范围大，抗拉力特强，可防水、防尘、抗盐、耐弱酸、酒精、油、油脂及一般溶剂。
| 规格 | 编号 | 电缆范围 | 螺纹外径 | 螺纹长度 | 扳手径 |
| Thread | Item.No. | CableRange | ThreadO.D. | ThreadLength | SpannerSize |
| Ф(mm) | C1(mm) | C2(mm) | A&F(mm) | ||
| M12 x 1.5 | M12A -5.5 | 3-5.5 | 12 | 8.5 | 18/19 |
| M12A -8 | 4.5-7.8 | 12 | 8.5 | 18/19 | |
| M16 x 1.5 | M16AS -5.5-ST | 3-5.5 | 16 | 10 | 22/19 |
| M16AS -8-ST | 4/8 | 16 | 10 | 22/19 | |
| M16A -7-ST | 4/7 | 16 | 10 | 22/22 | |
| M16A -10-ST | 6/10 | 16 | 10 | 22/22 | |
| M16AL -7 | 4/7 | 16 | 15 | 22/22 | |
| M16AL -10 | 6/10 | 16 | 15 | 22/22 | |
| M20 x 1.5 | M20M -7 | 6/7 | 20 | 15 | 27/22 |
| M20M -10 | 9/10 | 20 | 15 | 27/22 | |
| M20AS -9-ST | 5/9 | 20 | 10 | 27/24 | |
| M20AS -12.5-ST | 6-12.5 | 20 | 10 | 27/24 | |
| M20ASL -11 | 5/9 | 20 | 15 | 27/24 | |
| M20ASL -14 | 6-12.5 | 20 | 15 | 27/24 | |
| M20A -11-ST | 6/11 | 20 | 10 | 27/27 | |
| M20A -14-ST | 9/14 | 20 | 10 | 27/27 | |
| M20AL -11 | 6/11 | 20 | 15 | 27/27 | |
| M20AL -14 | 9/14 | 20 | 15 | 27/27 | |
| M20AZ-13 | 10/13 | 20 | 15 | 27/33 | |
| M20AZ -16 | 13/16 | 20 | 15 | 27/33 | |
| M22 x 1.5 | M22A -11-ST | 6/11 | 22 | 10 | 27/27 |
| M22A -14-ST | 9/14 | 22 | 10 | 27/27 | |
| M25 x 1.5 | M25AS -11--ST | 6/11 | 25 | 10 | 33/27 |
| M25AS -14--ST | 9/14 | 25 | 10 | 33/27 | |
| M25A -16-ST | 10/16 | 25 | 10 | 33/33 | |
| M25A -18-ST | 13-18 | 25 | 10 | 33/33 | |
| M25AL -16 | 10/16 | 25 | 15 | 33/33 | |
| M25AL -18 | 13-18 | 25 | 15 | 33/33 | |
| M32 x 1.5 | M32A -22 | 15-22 | 32 | 15 | 41/42 |
| M32A -25 | 18-25 | 32 | 15 | 41/42 | |
| PG7 | PG7A -5.5 | 3-5.5 | 12.5 | 8 | 17/19 |
| PG7A -8 | 4.5-7.8 | 12.5 | 8 | 17/19 | |
| PG9 | PG9A -5.5 | 3-5.5 | 15.2 | 8.2 | 22/19 |
| PG9A -8 | 4.5-7.8 | 15.2 | 8.2 | 22/19 | |
| PG11 | PG11A -7 | 4/7 | 18.6 | 10 | 24/22 |
| PG11A -10 | 6/10 | 18.6 | 10 | 24/22 | |
| PG13.5 | PG13.5A-8.8 | 5-8.8 | 20.4 | 10 | 27/24 |
| PG13.5A-12.5 | 7-12.5 | 20.4 | 10 | 27/24 | |
| PG13.5AZ-11 | 6/11 | 20.4 | 10.8 | 27/27 | |
| PG13.5AZ-14 | 9/14 | 20.4 | 10.8 | 27/27 | |
| PG16 | PG16A -11 | 6/11 | 22.5 | 10.8 | 30/27 |
| PG16A -14 | 9/14 | 22.5 | 10.8 | 30/27 | |
| PG16AZ-15 | 10/15 | 22.5 | 12 | 30/33 | |
| PG16AZ -17 | 13-17 | 22.5 | 12 | 30/33 | |
| PG21 | PG21A -16 | 10/16 | 28.3 | 12 | 36/33 |
| PG21A -18 | 13-18 | 28.3 | 12 | 36/33 | |
| PG29 | PG29A -22 | 15-22 | 37 | 12 | 46/41 |
| PG29A -24 | 18-25 | 37 | 12 | 46/41 | |
| G 1/4" | G 1/4A -5.5 | 3-5.5 | 13.157 | 8 | 19/19 |
| G 1/4A -8 | 4.5-7.8 | 13.157 | 8 | 19/19 | |
| G 3/8" | G 3/8AL -7 | 4/7 | 16.662 | 15 | 22/22 |
| G 3/8AL -10 | 6/10 | 16.662 | 15 | 22/22 | |
| G 1/2" | G 1/2AL -11 | 6/11 | 20.955 | 15 | 27/24 |
| G 1/2AL -14 | 9/14 | 20.955 | 15 | 27/24 | |
| G 3/4" | G 3/4AL -16 | 10/16 | 26.441 | 15 | 36/33 |
| G 3/4AL -18 | 13-18 | 26.441 | 15 | 36/33 | |
| G 1" | G 1AL -22 | 15-22 | 33.249 | 15 | 46/41 |
| G 1AL -24 | 18-25 | 33.249 | 15 | 46/41 |
